The STR-773 Water thermostatted cell holder with stirrer is used with a temperature controlled circulating water bath (not supplied) to maintain a constant sample and reference cell temperature.
The STR-773 accepts standard 10 mm path length cells. A magnetic stirrer is included to maintain temperature equilibrium in both cell positions.
| Specifications | |
|---|---|
| Cell | 10 mm cell |
| Operating temperature | Room temperature plus 10°C to 90°C |
| Circulating water inlet tube | Uni-tube (⌽6 x ⌽3 mm) |

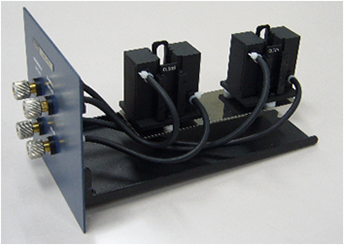

The NCP-706 is an automatic 6-position cell changer for up to 6 cell positions (pathlengths up to 10 mm). The sample positioning is software controlled using the Spectra Manager application.
A single cell is used for the reference position.
Temperature is controlled using a water-thermostatted circulator.
| Specifications | |
|---|---|
| Cell Movement | Linear |
| Cell Type | 10mm cell, Micro Cell (min. width 2mm) |
| Temperature control type | Water circulation |
| Operating temperature | Room temperature plus 10°C to 90°C |
| Reference cell holder | Constant temperature single-cell holder |
The optional CSP-909 lid is used for adding a reagent solution with a syringe without having to open the sample chamber for starting fast reactions without a delay in measurement. The syringe port lid can be used with the range of single cell holders.
| Recommended syringe | 0507-0220 Micro syringe, 10 µL 0507-0246 Micro syringe, 100 µL |
The HMC-711 Water Thermostatted Micro Cell Holder is used with a temperature controlled circulating water bath (not supplied) to maintain a constant sample temperature. The cell holder accepts standard 10 mm path length cells with a minimum path width of 2 or 4 mm.
| Specifications | |
|---|---|
| Compatible Cell | 5 or 10 mm path length square cell 5 or 10 mm path length square micro cell |
| Operating temperature | Room temperature plus 10°C to 90°C |
| Circulating water inlet tube | Uni-tube (⌽6 x ⌽3 mm) |
| Item | P/N | Specification |
|---|---|---|
| Rectangular micro quartz cell | 1103-0025 | 5 mm path, 2 mm width |
| Rectangular micro quartz cell | 1103-0030 | 10 mm path, 4 mm width |
| Rectangular micro quartz cell | 1103-0026 | 10 mm path, 2 mm width |
| Rectangular micro quartz black cell | 1103-0031 | 10 mm path, 4 mm width |
| Rectangular micro quartz black cell | 1103-0032 | 10 mm path, 2 mm width |
Rectangular micro quartz cell
1103-0026
10 mm path, 2 mm width
100 µL minimum volume
Rectangular micro quartz black cell
1103-0032
10 mm path, 2 mm width
100 µL minimum volume

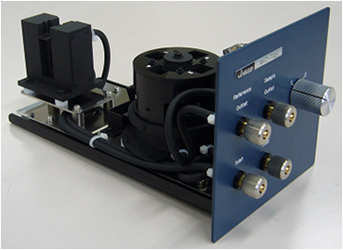

The MHT-745 is used with a temperature controlled circulating water bath. The 4-position turret cell holder can be rotated manually for measurement of up to four cells. Requires four 10x10 mm rectangular cells (not included).
| Specifications | |
|---|---|
| Thermostatted cells | 10-mm rectangular cell Sample-side cell holder: 4 Reference side cell holder: 1 |
| Operating temperature | Room temperature plus 10°C to 90°C |
| Circulating water inlet | Uni-tube (⌽7 x ⌽5 mm) |

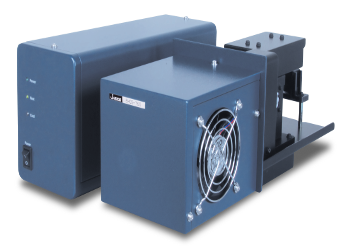

This Peltier cell holder precisely maintains the specified sample temperature. The cell holder includes a stirrer for uniform cell temperature. The EHC-760 cell holder is an air-cooled accessory for temperature control without using a water circulator.
OPS-512 Optional temperature sensor for EHCS-760
OPS-512 OP sensor for direct temperature measurement in the sample cell for both the ETC-760 or EHC-761
| Specifications | |
|---|---|
| Thermostatted cells | 10-mm rectangular cell (sample side) |
| Temperature control system | Heating/cooling system using Peltier effect |
| Heat radiating system | Air cooled |
| Stirring system | Magnetic stirrer (variable speed) |
| Temperature setting range | 5 to 70°C |
| Temperature control range | 10 to 60°C (for room temperature = 20°C) |
| Temperature control accuracy | ± 0.1°C |
| Temperature accuracy | (Difference between displayed temperature and actual cell temperature) 20°C to 40°C ± 0.5°C ± 1°C when set temperature is outside the above range |
| Temperature setting difference | (Difference between set temperature and displayed temperature) 20°C to 40°C ±0.3°C ± 0.5°C when set temperature is outside the above range |

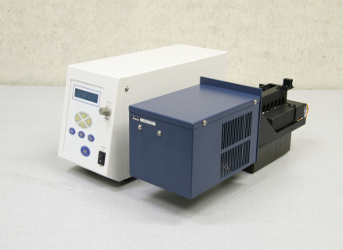

Model PSC-761 multi-cell accessory for simultaneous temperature controlled measurement in up to 6 sample cells. This cell holder uses air-cooled Peltier effect to control sample temperature with high accuracy. Includes a variable speed stirrer for thermal equilibrium for all sample cells.
OPS-513 Optional temperature sensor for PSC-763
OPS-513 OP sensor for direct temperature measurement in the sample cell.
| Specifications | |
|---|---|
| Thermostatted cells | Up to six 10 mm rectangular sample cells (ambient reference cell) |
| Temperature control system | Heating/cooling system using Peltier effect |
| Heat radiating system | Forced air cooling |
| Stirring system | Magnetic stirrer (variable speed) |
| Temperature setting range | 10 to 70°C |
| Temperature control range | 15 to 60°C (for room temperature = 20°C) |
| Temperature control accuracy | ± 0.1°C |
| Temperature accuracy | (Difference between displayed temperature and actual cell temperature) 20°C to 40°C ± 0.5°C ± 1°C when set temperature is outside the above range |
| Temperature setting difference | (Difference between set temperature and displayed temperature) 20°C to 40°C ±0.3°C ± 0.5°C when set temperature is outside the above range |
